H-MTD^® Ethernet Connectors

Future ready for next speed level up to 20Ghz

Enabling Smart Mobility while Optimizing Tomorrow’s Vehicle’s Architecture

At Aptiv, we understand the full electrical architecture of today’s and tomorrow’s vehicles. By leveraging a unique expertise in architecture optimization and new mobility software enabled solutions, we manage complexity over the whole system and simplify components integration to deliver the high-speed data and high-power electrical systems required for feature-rich, highly automated vehicles.

A standard solution to optimize Data Integrity

Automotive in-vehicle network speeds are increasing at an exponential rate. Future systems will require multi-gig data transfer rates with connections that support rates up to 20 GHz. Ensuring data integrity at every level is becoming critical. A reliable and fully shielded two-wire solution is required to avoid any loss in speed or signal quality.

Our technical partnership with the high frequency connectivity company Rosenberger allows us to enhance capabilities in high-speed data transmission to deliver high-performance, cost-effective, high-speed data solutions for the automotive market Our global engineering and manufacturing footprint allows us to serve our global customers locally.

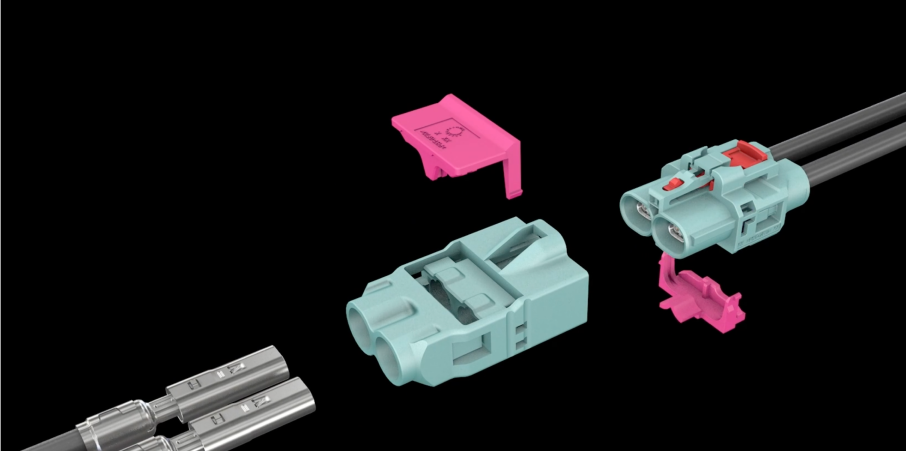

Our H-MTD^® cable assemblies

Support Shielded Twisted Pair (STP) cables and future Shielded Parallel Pair (SPP) cables

Standard signal protocol allows H-MTD® cable assemblies that can convert to interfaces such as AMEC

Standard cavity designs facilitate Hybrid applications

Modular design to support future applications without redesigning the hardware

H-MTD^® Series Benefits

Interface, PCB and cavity compatible to Rosenberger H-MTD®

Produced on automated assembly lines to maintain highest quality

Various cable design, optional Connector Position Assurance (CPA)

Mating interface design has been optimized to provide lowest possible insertion force

Optimized design for ergonomics and robustness

Cable termination system ensures repeatable performance at all frequencies during mechanical and environmental test cycles

H-MTD^® Series Overview and Performance

Ports	1, 2, 4, 6
Component types	Housings, Headers and Cable assembly
Sealing	Unsealed, Sealed
Terminal Position Assurance	Yes
Connector Position Assurance	Optional
Frequency Range	Up to 20 GHz
Impedance	100 Ω
Return Loss	≥ 30 dB, DC to 1 GHz TBD, DC to 20 GHz
Vibration Class	SC 1 body unsealed, SC 2 body sealed
Sealing Class	LV214 or DIN60329 IPX9K, USCAR V1 chassis profile
Channel Specification	IEEE 802.3bp (1000BASE-T1), IEEE 802.3ch (NGAUTO), PCI E (in preparation)
